High Strength Railway Bolt Rail Track Bolts For Fasten Rail Joints To Link Rails

Suzhou Zhongyue Railway Material Co.,Ltd.
Contact Now
    Buy cheap High Strength Railway Bolt Rail Track Bolts For Fasten Rail Joints To Link Rails from wholesalers

    Buy cheap High Strength Railway Bolt Rail Track Bolts For Fasten Rail Joints To Link Rails from wholesalers
    • Buy cheap High Strength Railway Bolt Rail Track Bolts For Fasten Rail Joints To Link Rails from wholesalers
    • Buy cheap High Strength Railway Bolt Rail Track Bolts For Fasten Rail Joints To Link Rails from wholesalers
    • Buy cheap High Strength Railway Bolt Rail Track Bolts For Fasten Rail Joints To Link Rails from wholesalers

    High Strength Railway Bolt Rail Track Bolts For Fasten Rail Joints To Link Rails

    Ask Lasest Price
    Brand Name : ZhongYue
    Model Number : 24x145mm
    Certification : ISO9001:2015
    Price : Negociable
    Supply Ability : 500000PCS/MONTH
    Delivery Time : 30 days after received your payment
    Payment Terms : T/T, 30% in advance
    • Product Details
    • Company Profile

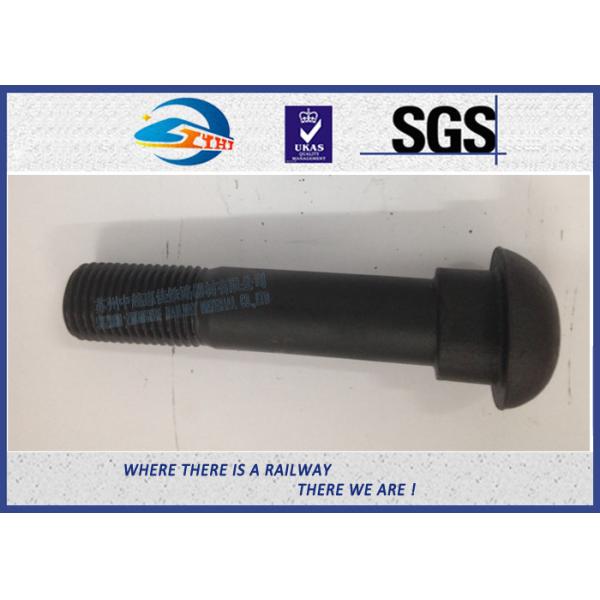

    High Strength Railway Bolt Rail Track Bolts For Fasten Rail Joints To Link Rails

    High-Strength Rail track bolts, used to fasten rail joints to link rails
    Track bolts are genera hexagon domed head bolts. They are used to secure the track plates to the track chains Zhongyue track bolts are made from alloy steels and heat-treated to the specifications of the original equipment manufacturers according to customers' drawings and samples
    We also produce many double head screws each year according to clients' drawings or samples.

    BrandZhongYue
    NameRailway bolt
    Typecustomized
    Russian clamp bolt & inserted bolt
    Or the type by customers’ drawings
    Grade4.65.68.810.9
    MaterialQ23535#45#40Cr
    Mechanical propertiesTensile strength: ≥400MpaTensile strength:≥500MpaTensile strength:≥800MpaTensile strength:≥1000Mpa
    Yield strength:≥240MpaYield strength:≥300MpaYield strength:≥640MpaYield strength:≥900Mpa
    Elongation:≥22%Elongation:≥20%Elongation:≥12%Elongation:≥9%
    Cold bending: 90 degree without crackCold bending: 90 degree without crackCold bending: 90 degree without crackCold bending: 90 degree without crack
    Surfaceplain (oiled), Oxide black, Zinc, HDG, wax, bitumen, Dacromet, Sherardizing
    Standard refersUIC864-2
    High Strength Railway Bolt Rail Track Bolts For Fasten Rail Joints To Link Rails
    High Strength Railway Bolt Rail Track Bolts For Fasten Rail Joints To Link Rails

    We not only can produce according to International standards, customers’ drawings and samples, but also can provide design proposal by our own high standard R&D department.

    With the principles of quality first and customers first, ZY Rail enjoys bulk popularity and high reputation at home and abroad, while having many customers all over the world. With powerful strength and broad vision, ZY rail is moving towards internationalization of enterprises.


    Aplication

    Railway, Mining, Bridge, Construction and so on

    Inspection machine for finished rail clips

    Our main products:


    1. We produce rail bolt and clip bolt for concrete sleeper and crane rail. The diameter is 18mm and 22mm, its length varies from 125mm to 195mm, the railway bolt material is in accordance with UIC864-2, and the grade is 4.5 and 5.6.


    2. We produce the short clip bolt and long clip bolt with BSW thread for the African market. Round or square necks are mainly used with steel sleeper assemblies together with rail clips.

    M20 X 60 30Kg rail
    M20 X 75 30Kg rail
    M22 X 66 40Kg rail
    M22 X 80 48Kg rail

    Assembly with heavy series nut and spring washer optional

    Material: Q235, 35# and 45#
    Grade: 4.6, 4.8, 5.6, 8.8
    Surface: Plain, black painting
    MOQ: 5000PCS


    Packing: Plastic bags and wooden pallets or according to clients' requirement

    3. We can also produce the special clip type railway bolt according to our customers' requirement
    Material: Q235, 35# and 45#
    Grade: 4.6, 4.8, 5.6, 8.8
    Surface: Plain, black painting
    MOQ: 5000PCS
    Packing: Plastic bags and wooden pallets or according to clients' requirement


    Custom Railroad Track Spikes , Threaded Screw Spike For Rail Fastening System
